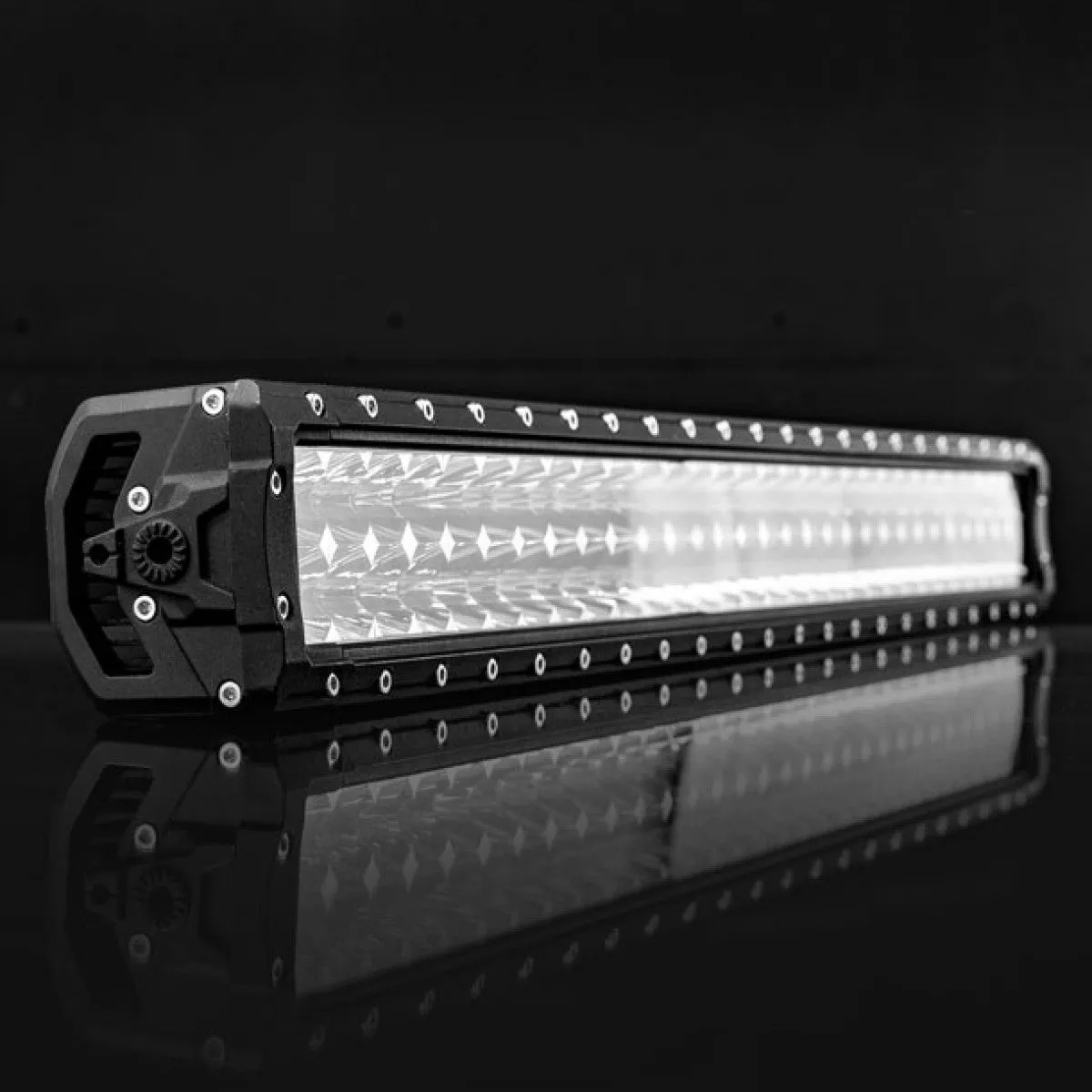

Name: Stedi 32 Inch ST4K 60 LED Double Row Light Bar
SKU: 415536

Product Details ＋

The all new ST4K™ 32 Inch is the culmination of years of proven experience in delivering market leading LED auxiliary lighting. Fitted with 60 of OSRAM’s® finest OSLON® LED for a combination of 8 Flood 44 Spot 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 810m

The ST4K™ range feature the all new 3-part beam adopted from Stedi's flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x the price and a massive 165% increase in lux performance in comparison to the outgoing ST4000!

PINNACLE OF PERFORMANCE

With The range of ST4Ks running PURE Drive™ technology to take full advantage of the input power with 97% going straight to the LEDs and aggressive build quality, the ST4K is built for the test.

PERFORMANCE

Seeking the perfect all-rounder but getting overwhelmed by the choice of LED Driving lights out there? With the wide market of curved, straight, and micro bars you can sometimes find yourself getting confused by choice and eventually falling onto a light that might not even meet your intended purpose. The ST4K meets all corners of the market with its combo beam bringing the best of spot flood, shooting an amazing 810m in distance and 55m each side of the vehicle in flood beam.

APPLICATION

The STEDI ST4K has been built on the same platform as the STEDI TYPE X which is the flagship when it comes to LED Driving Lights providing the best of both worlds with 60 OSRAM’s® OSLON® LEDs and a wide range of sizes, the application for the ST4K is endless. The ST4K proves to be a well-performing all-rounder in any situation so if it is a single multi-purpose light your after, the ST4K will meet your needs.

PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON

STEDI ST4K-60 features 60 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly match optical properties.

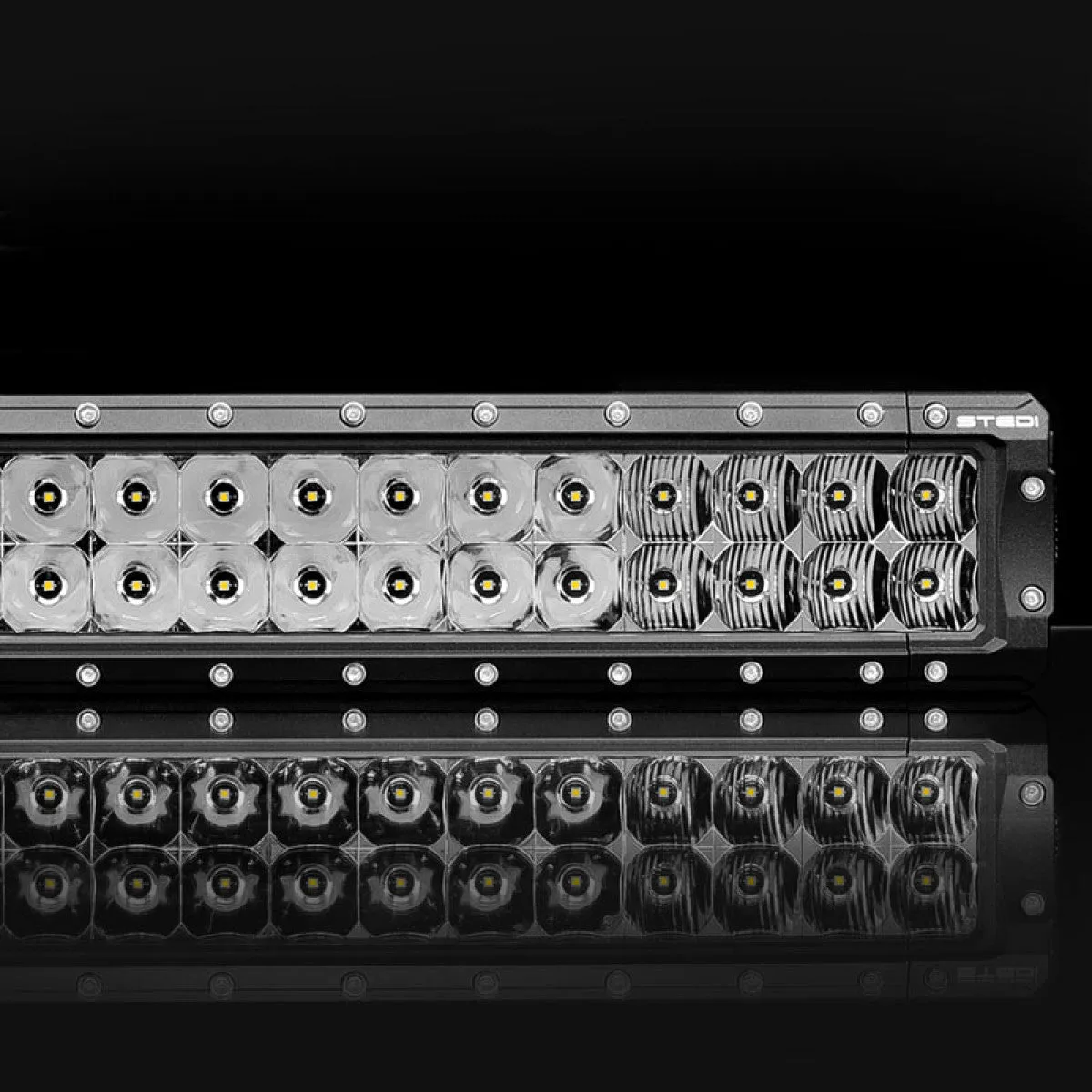

8 Flood 44 Spot 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 810m

Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

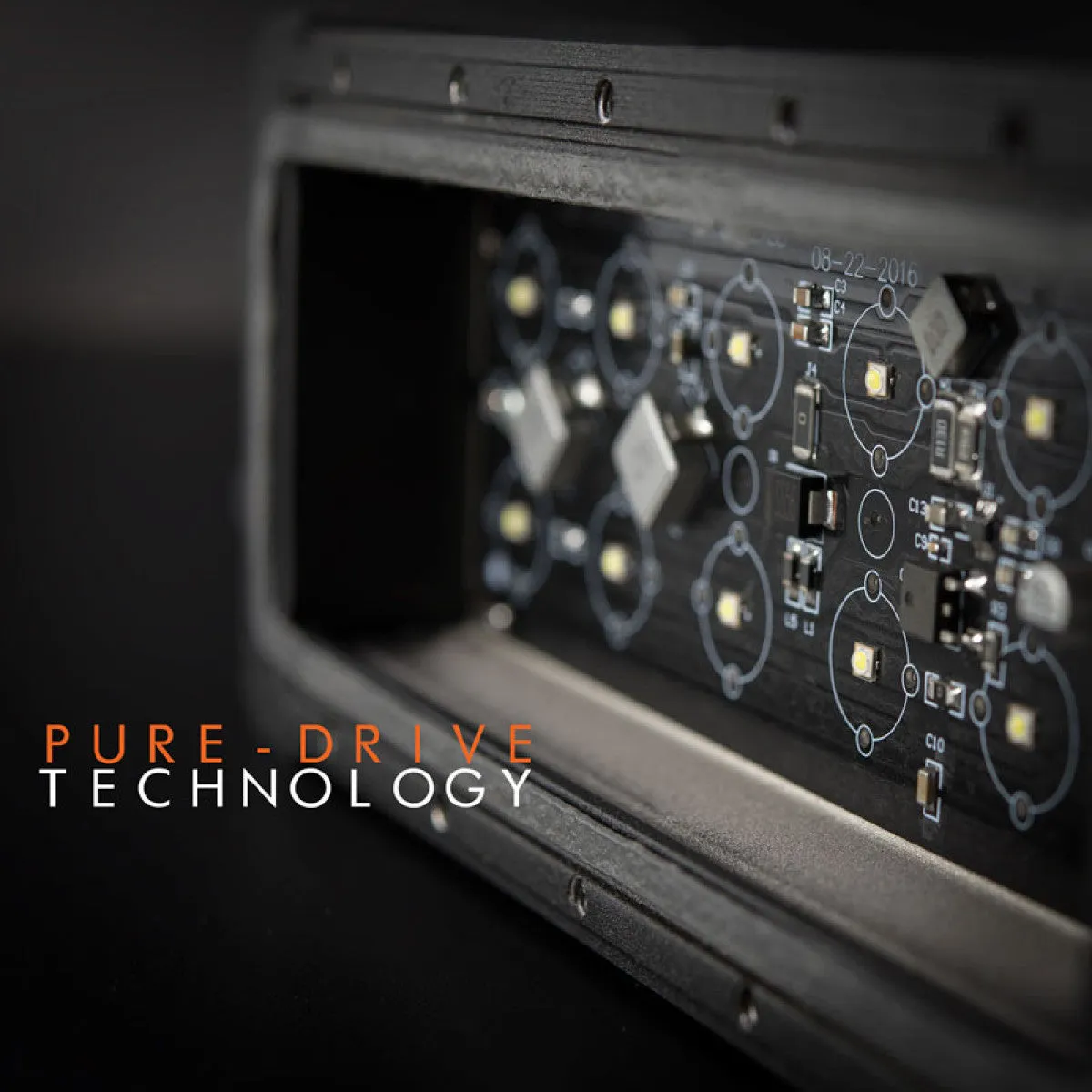

Pure-Drive™ circuit design allow 97% of input power to go directly to LEDs.

BUILT TO GO ALL NIGHT

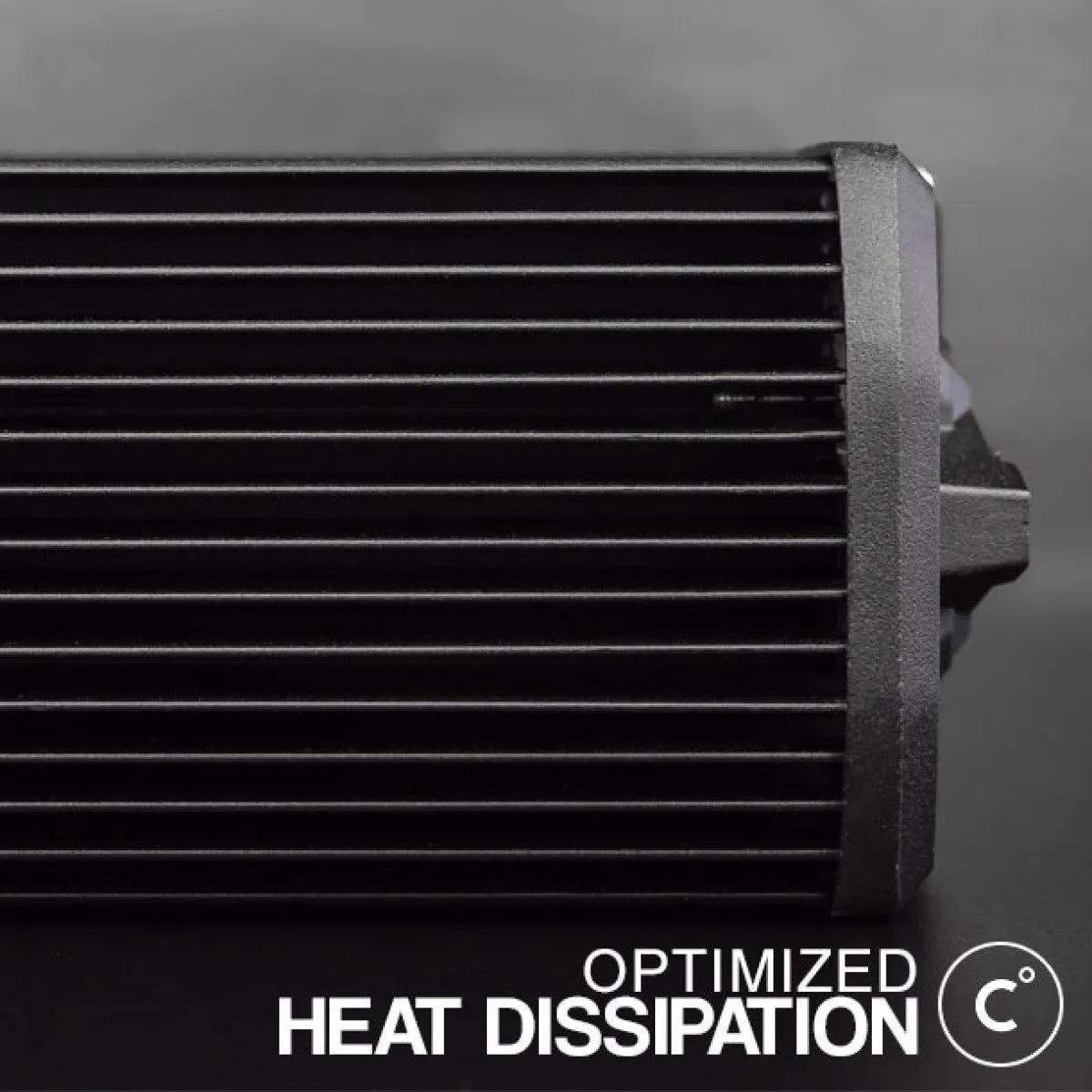

A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that the bars will never discolour.

Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight Water-proof up to 3 meters

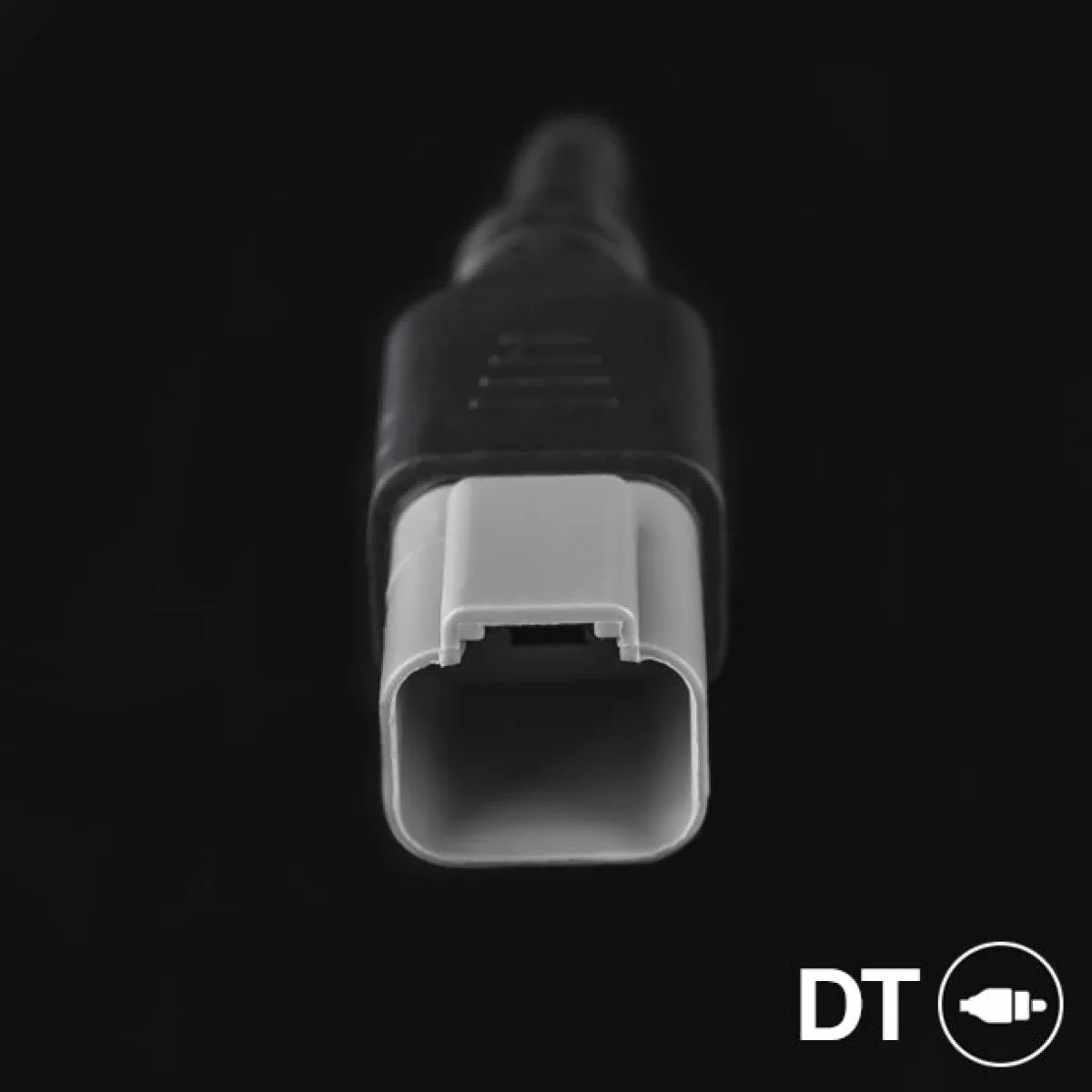

Environmentally sealed Deutsch ® DT connector.

MOUNT IT YOUR WAY

Stedi know you want flexible mounting options, which is why they’ve included two seperate mounting options.

The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.

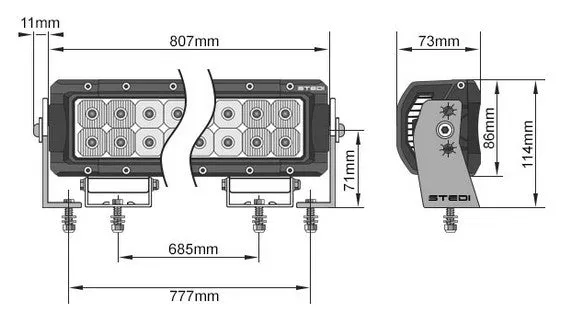

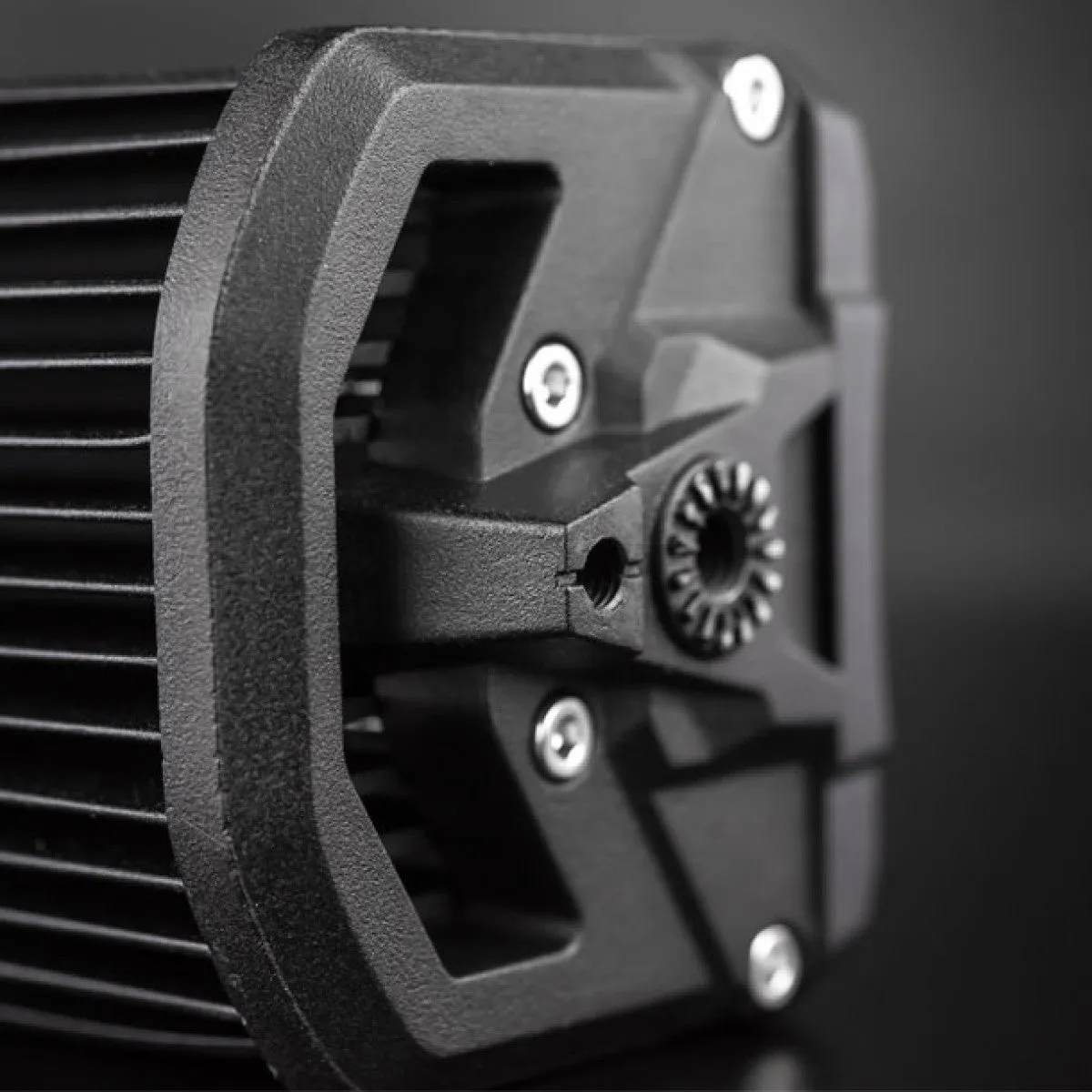

Or use the 3mm thick 304 Stainless steel side brackets, which feature or - 15mm height adjustment.

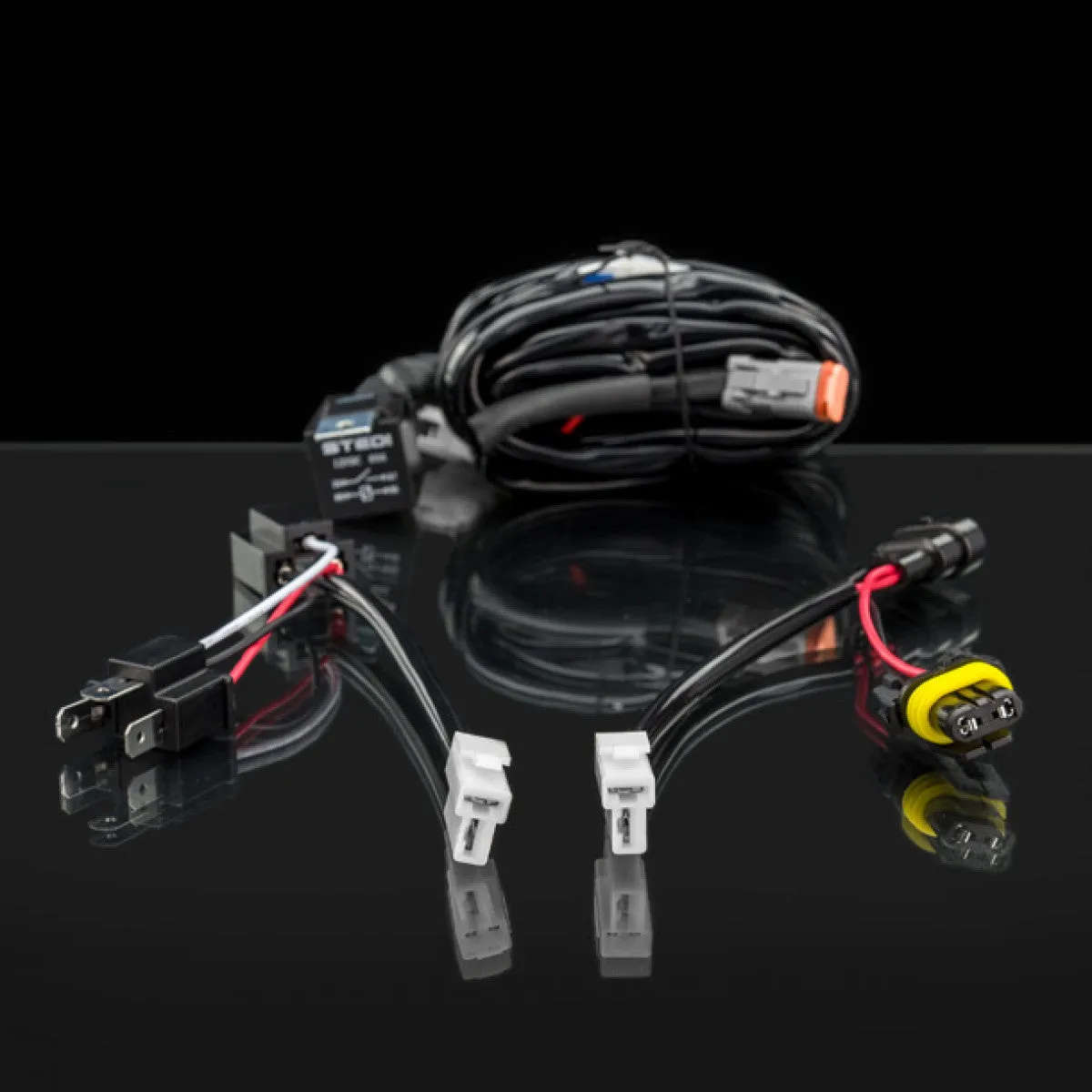

EASY-FIT Plug & Play High Beam Wiring Harness included.

Included is the acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 Adapters, making for an easy connection to high beam. Further unlike other brands the kit has built in electronics making the harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched the harness will work right out of the box without any modification whatsover.

What’s in the box
